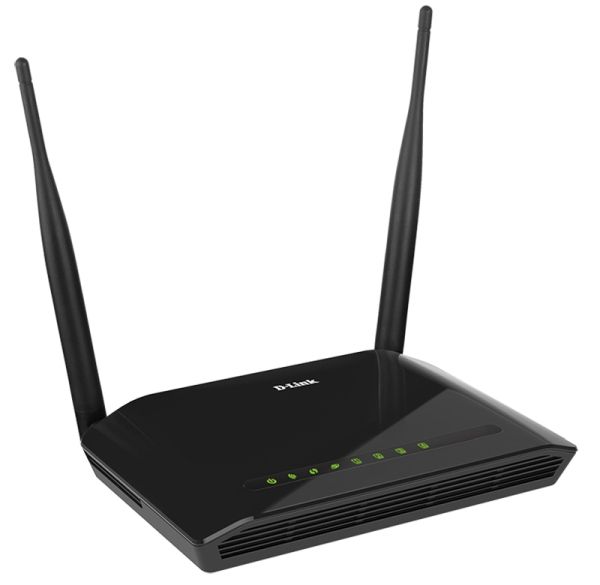

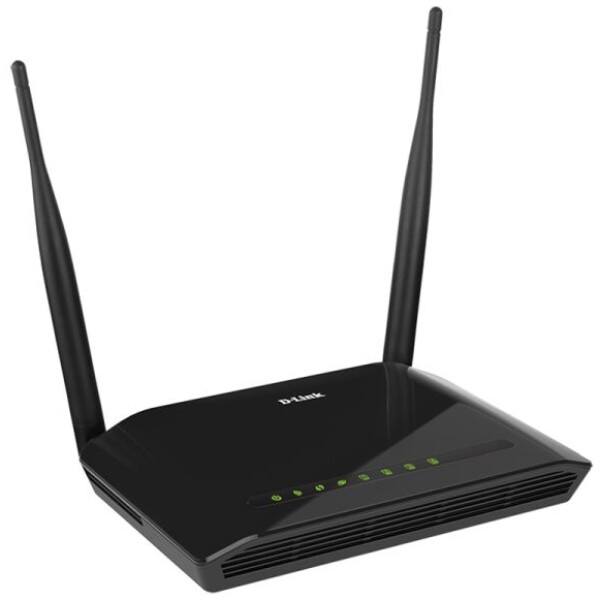

אקסס פוינט/נקודת גישה אלחוטית D-Link 4 Port Wi-Fi N 300Mbps

WAN Interface
• 1 10/100BASE-TX Ethernet port for cable or DSL modem or private Ethernet line

LAN Interface
• 1 10/100BASE-TX Ethernet port

WLAN Interface
• IEEE 802.11n (up to 300Mbps)
• IEEE 802.11b/g

Antenna
• Two 5dBi detachable omnidirectional antennas
• RP-SMA connector

Frequency Range
• 802.11b
    ◦ 2400 ~ 2497MHz ISM band
• 802.11g
    ◦ 2400 ~ 2483.5MHz ISM band
• 802.11n
    ◦ 2400 ~ 2483.5MHz ISM band

Modulation Schemes
• 802.11b: DQPSK, DBPSK, DSSS, CCK
• 802.11g: BPSK, QPSK, 16QAM,
64QAM with OFDM
• 802.11n: BPSK, QPSK, 16QAM,
64QAM with OFDM

Operation Modes
• Access point mode
• Router mode

Network Functions
• WAN connection types
    ◦ PPPoE
    ◦ Static IP
    ◦ Dynamic IP
    ◦ Static IP + PPPoE
    ◦ Dynamic IP + PPPoE
    ◦ PPTP/L2TP + Static IP
    ◦ PPTP/L2TP + Dynamic IP
• DHCP server/relay
• DNS relay
• VPN pass-through (PPTP/L2TP)
• Dynamic DNS
• Static IP routing
• Remote management
• Network statistics for each interface
• IGMP Proxy
• RIP
• Support of UPnP IGD
• WAN ping respond
• Support of SIP
• Support of RTSP
• PPPoE pass through

Wireless Connection
• Supported security settings
    ◦ WEP
    ◦ WPA/WPA2 Personal
    ◦ WPA/WPA2 Enterprise
• MAC filter
• Managing connected stations
• PIN and PBC methods of WPS
• WMM (Wi-Fi QoS)
• Advanced settings
• WDS
• “Client” function (access point mode)
    ◦ Wireless network client
    ◦ Wireless network repeater
• “Client” function (router mode)
    ◦ WISP repeater

Firewall Functions
• Network Address Translation (NAT)
• Stateful Packet Inspection (SPI)
• IP filters
• URL filter
• MAC filter
• DMZ
• Prevention of ARP and DDoS attacks
• Virtual servers

Configuration and Management
• Multilingual web-based interface for configuration and management
• Access via TELNET
• Firmware update via web-based interface
• Automatic notification on new firmware version
• Saving/restoring configuration to/from file
• Support of remote logging
• Automatic synchronization of system time with NTP server and manual time/date setup
• Ping function
• Traceroute utility
